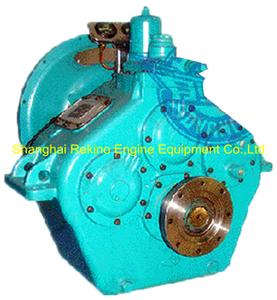

ADVANCE 120B marine gearbox transmission

Quantity:
Inquire Add to Basket

  • 120B

  • ADVANCE

  • 8483409000

  • ADVANCE

  • 750-1800RPM

  • 25KN

ADVANCE 120B marine gearbox transmission

Speed ratio HP/RPM KW/RPM
2.03 2.81 0.12 0.088
3.73 0.126 0.093

Engine speed:750-1800RPM
Max 240HP /2000RPM
LxWxH: 605×744×770mm
Net weight:400KG
Bell housing:6135Ca、4120、SAE1
Flywheel:6135Ca、4120、SAE14
Control:Push-and-pull flexible shaft, electrically
Centre distance: 190mm
Rated propeller thrust: 25N
