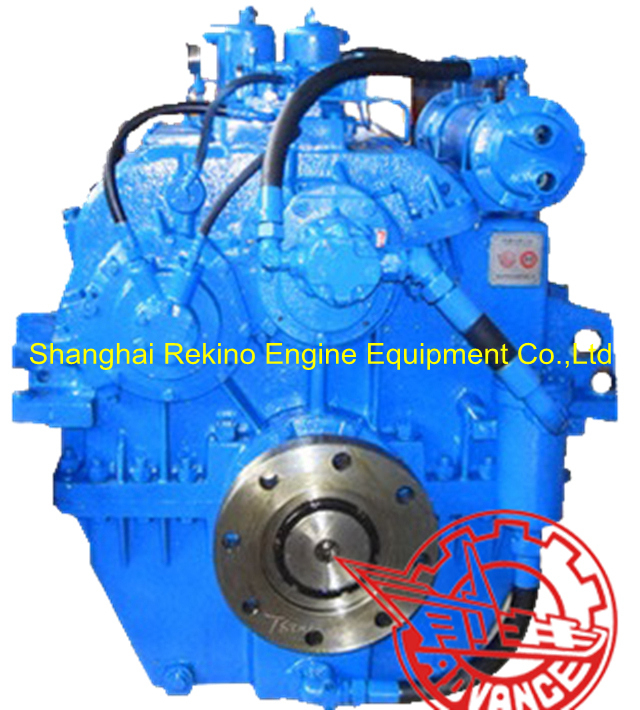

ADVANCE HCD1000 marine gearbox transmission

Quantity:
Inquire Add to Basket

  • HCD1000

  • ADVANCE

  • 8483409000

  • ADVANCE

  • 600-1900RPM

  • 110KN

ADVANCE HCD1000 marine gearbox transmission

Speed ratio HP/RPM KW/RPM
3.429 3.96 4.391 4.45 4.905 5.06 1.00 0.735
5.474 0.925 0.68
5.833 0.885 0.651

Engine speed:600-1900RPM
Max 1900HP/1900RPM
LxWxH: 1082×1280×1345mm
Net weight:1900KG
Bell housing: SAE 00 0
Flywheel: SAE 18,21
Control: mechanical or electrical remote control. pneumatically
Centre distance:450mm
Rated propeller thrust: 140KN
