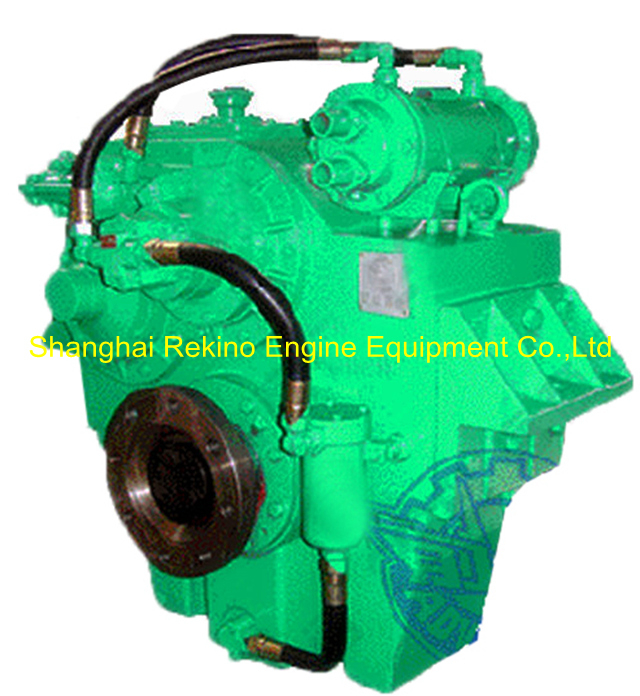

ADVANCE HCD600A marine gearbox transmission
Speed ratio | HP/RPM | KW/RPM |
4.18 4.43 | 0.6 | 0.441 |
4.70 | 0.57 | 0.419 |
5.00 | 0.54 | 0.397 |
5.44 5.71 | 0.49 | 0.36 |
Engine speed:1000-2100RPM
Max 1365HP /2100RPM
LxWxH: 745×1094×1271mm
Net weight:1550KG
Bell housing: SAE 00 0
Flange: SAE 14, 16, 18,21
Control: Push-and-pull flexible shaft, electrically, pneumatically
Centre distance: 415mm
Rated propeller thrust: 90KN
Note: The "Rate" will rise 8% if high-flexible coupling is used
