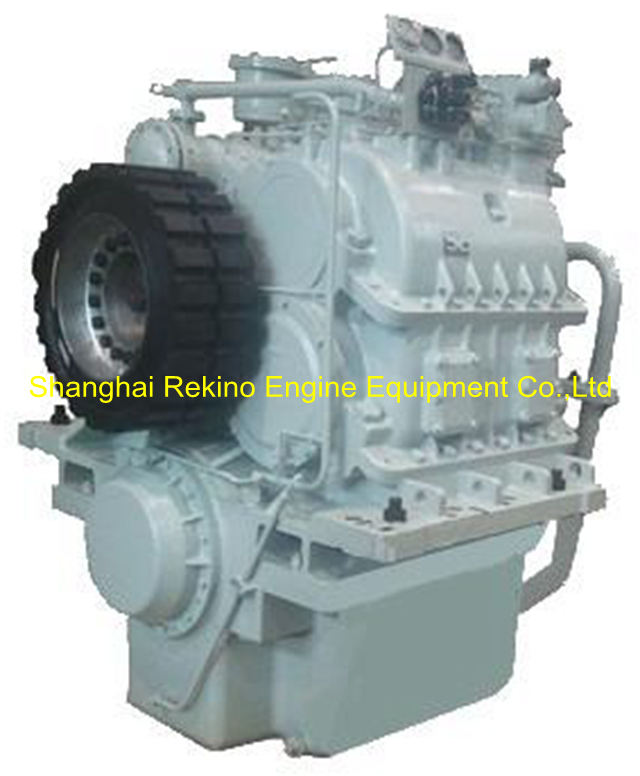

ADVANCE HCT1600 marine gearbox transmission

Quantity:
Inquire Add to Basket

  • HCT1600

  • ADVANCE

  • 8483409000

  • ADVANCE

  • 500-1650RPM

  • 250KN

ADVANCE HCT1600 marine gearbox transmission


Speed ratio HP/RPM KW/RPM
5.545 5.972 6.585 6.99 7.456 7.9 1.65 1.213
8.45 9 1.501 1.104
9.5 1.265 0.93

Engine speed:500-1650RPM
Max 2723HP/1650RPM
LxWxH: 1246x1500x1750mm
Bell housing: without
Flywheel: according to engine
Net weight:4200KG
Control:Mechanical,electrical and pneumatic
Centre distance:585mm
Rated propeller thrust: 250KN
