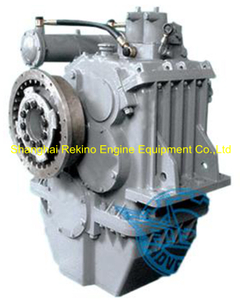

ADVANCE HCT800/1 marine gearbox transmission

Quantity:
Inquire Add to Basket

  • HCT800/1

  • ADVANCE

  • 8483409000

  • ADVANCE

  • 600-1800RPM

  • 220KN

ADVANCE HCT800/1 marine gearbox transmission

Speed ratio HP/RPM KW/RPM
6.91 7.28 7.69 8.12 8.6 9.12 9.68  0.85 0.625
10.3 0.83 0.61
10.98 0.78 0.574
11.76 0.75 0.551
12.43 0.71 0.522
13.17 0.67 0.493
13.97 0.63 0.463
14.85 0.59 0.434
15.82 0.55 0.404
16.58 0.52 0.382
20.1 0.39 0.287

Engine speed:800-1800RPM
Max 1530HP/1800RPM
LxWxH: 1152×1360×1557mm
Net weight:3200KG
Bell housing: SAE 00 0
Flange: SAE16,18,21
Control: Push-and-pull flexible shaft, electrically, pneumatically
Centre distance:582mm
Rated propeller thrust: 220KN
