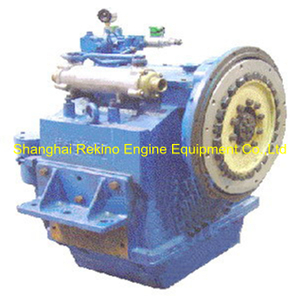

ADVANCE T300 marine gearbox transmission
Speed ratio | HP/RPM | KW/RPM |
4.73 4.95 6.03 6.65 7.04 | 0.330 | 0.243 |
7.54 8.02 | 0.301 | 0.221 |
8.47 | 0.272 | 0.2 |
Engine speed:1000-2300RPM
Max 795HP /2300RPM
LxWxH: 772×980×1106mm
Net weight:1120KG
Bell housing: SAE 0 1
Flange: SAE18,16,14
Control: mechanical,pneumatic or electrical remote control
Centre distance: 355mm
Rated propeller thrust:70KN
