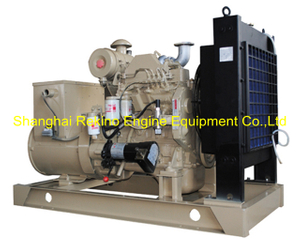

40KW 50KVA 60HZ Cummins emergency generator genset set

Quantity:
  • CCFJ40YW (4BTA3.9-GM65)

  • Cummins

  • 8502110000

  • 40KW 50KVA

  • 60HZ

  • Emergency

  • Double starter ( Electric or Air/ Manual)

40KW 50KVA 60HZ Cummins emergency generator genset set

Generator model CCFJ40YW
Rated power 40KW
Standby power  44KW
Generator capacity 50KVA
Factor 0.8 lag
Frequency 60HZ
Voltage 440/260V
Current 72A
Phase / connection 3 phase 3 wire
Generator Weight 1000KG
Size  1810x730x1280mm
Engine  Cummins  4BTA3.9-GM65
Rated power 65KW
Standby power  72KW
Bore*stroke 102*120 (mm)
Speed 1800RPM
Alternator  Marathon MP-H-40-4
Alternator  Sunvim SVH224
Excitation Brushless & self-excited
Insulation  H
Protection IP22/23
Starting model  Double starter
