Quantity: | |
---|---|

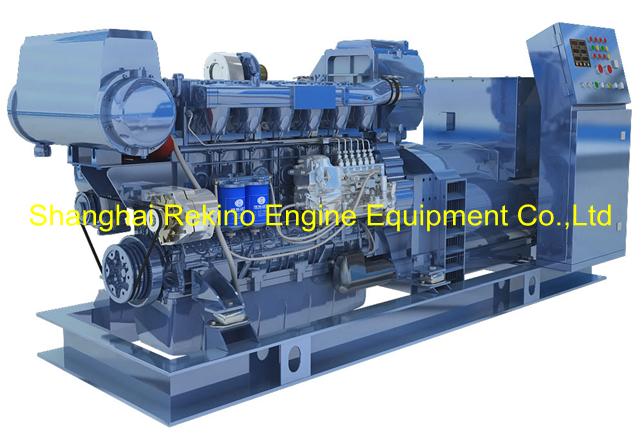

CCFJ320JW (WP13CD394E200)
Weichai
8502131000
320KW 400KVA
50HZ
Double circulate water cooling
Genset Model | | CCFJ320JW |
Engine model | | Weichai WP13CD392E200 |
Alternator model | | Marathon MP-H-320-4 |
Prime power | (KW/KVA) | 320KW/400KVA |
Frequency | (HZ) | 50 |
Rated speed | (RPM) | 1500 |
Rated current | (A) | 577 |
Rated voltage | (V) | 400/230V |
Engine power | (KW/KVA) | 356KW/445KVA |
Cylinder Nos. | | 6 |
Bore x stroke | (mm) | 126*165 |
Displacement | (L) | 12.54 |
Fuel comsumption | (L/h) | 81.6 |
Oil pan capacity | (L) | 36 |
Governing method | | Mechanical or Electric |
Voltage regulation mode | | Automatic |
Phase and connection | | 3 phase-4wire |
Weight | (KG) | 2466 |
Size | (mm) | 2664*1000*1532 |
Certificate | | CCS+IMO Tier II |
Application | | Fishing, transport, passenger, law enforcement ship |
