You are here: Home » Products » Marine generator » Cummins marine generator » Cummins 400KW 500KVA 60HZ marine generator genset set (CCFJ400JW / KTA19-DM)
Share to:

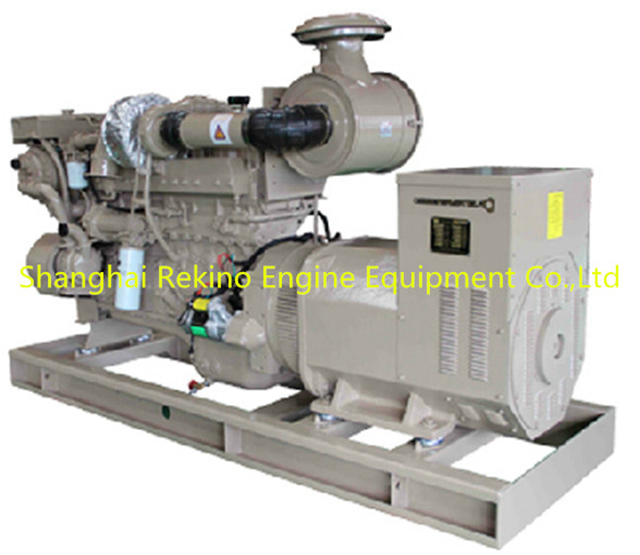

Cummins 400KW 500KVA 60HZ marine generator genset set (CCFJ400JW / KTA19-DM)

Quantity:
  • CCFJ400JW / KTA19-DM
  • Cummins
  • 8502131000
  • 400KW 500KVA
  • 60HZ
  • Sea water exchanger cooling
Cummins 400KW  500KVA  60HZ marine generator genset set (CCFJ400JW / KTA19-DM)


Type of Gen-set
Cummins marine diesel generator
Generator model
CCFJ400JW
Rated Capacity (KVA) 500KVA
Rated Power (KW) 400KW
Standby power (KW) 440KW
Diesel Engine
Cummins KTA19-DM
Alternator
Marathon MX-H-400-4 or Sunvim SVH354
Engine power  (KW) 463KW
Cooling Mode
Heat Exchanger Cooling
Rated Voltage (V) 440V
Rated Current (A) 722A
Rated Frequency (HZ) 60HZ
Power Factor(Lagging)
0.8
Phase & Connection
Three Phases & Three Wires, Y Connection
Rated Speed (RPM) 1800RPM
Fuel Consumption (g/kW.h) ≤205
Starting Mode
Electric Starting
Weight of Gen-set (KG) 3950KG
Overall Dimension  (mm) 3170*1000*1905mm
Certificate
CCS,IMO,BV,etc
