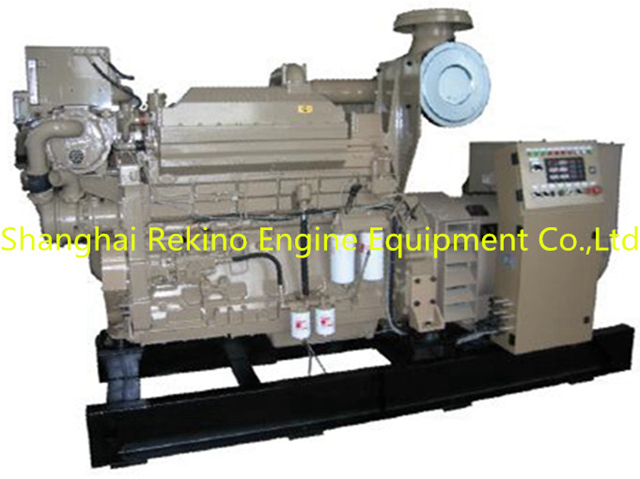

Cummins 450KW 563KVA 60HZ marine generator genset set (CCFJ450JW / KTA19-DM)

Quantity:
  • CCFJ450JW / KTA19-DM

  • Cummins

  • 8502131000

  • 450KW 563KVA

  • 60HZ

  • Sea water exchanger cooling

Cummins 450KW  563KVA  60HZ marine generator genset set (CCFJ450JW / KTA19-DM)

Type of Gen-set
Cummins marine diesel generator
Generator model
CCFJ450JW
Rated Capacity (KVA) 563KVA
Rated Power (KW) 450KW
Standby power (KW) 495KW
Diesel Engine
Cummins KTA19-DM
Alternator
Marathon MX-H-450-4 or Sunvim SVH354
Engine power  (KW) 507KW
Cooling Mode
Heat Exchanger Cooling
Rated Voltage (V) 400V
Rated Current (A) 812A
Rated Frequency (HZ) 60HZ
Power Factor(Lagging)
0.8
Phase & Connection
Three Phases & Three Wires, Y Connection
Rated Speed (RPM) 1800RPM
Fuel Consumption (g/kW.h) ≤205
Starting Mode
Electric Starting
Weight of Gen-set (KG) 3950KG
Overall Dimension  (mm) 3950*1500*2500mm
Certificate
CCS,IMO,BV,etc
