| Quantity: | |
|---|---|

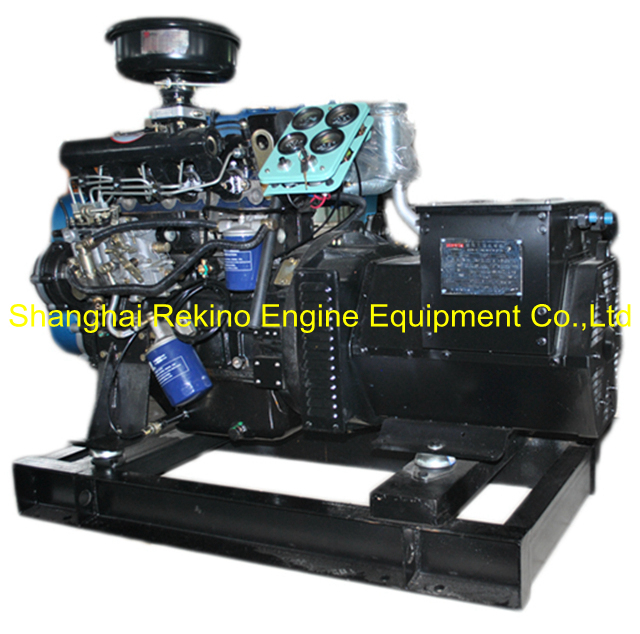

CCFJ10JW (WP2.1CD18E1)
Weichai
8502110000
10KW 12.5KVA
50HZ
Double circulate water cooling
| Genset Model | | CCFJ10JW |
| Engine model | | Weichai WP2.1CD18E1 |
| Alternator model | | Marathon MP-H-10-4 |
| Prime power | (KW/KVA) | 10KW/12.5KVA |
| Frequency | (HZ) | 50 |
| Rated speed | (RPM) | 1500 |
| Rated current | (A) | 18 |
| Rated voltage | (V) | 400/230V |
| Engine power | (KW/KVA) | 17.5KW/22KVA |
| Cylinder Nos. | | 4 |
| Bore x stroke | (mm) | 85*92 |
| Displacement | (L) | 2.088 |
| Fuel comsumption | (L/h) | 2.6 |
| Oil pan capacity | (L) | 5 |
| Governing method | | Mechanical |
| Voltage regulation mode | | Automatic |
| Phase and connection | | 3 phase-4wire |
| Weight | (KG) | 467 |
| Size | (mm) | 1318*640*1137 |
| Certificate | | CCS+IMO Tier II |
| Genset Model | | CCFJ10JW |
| Engine model | | Weichai WP2.1CD18E1 |
| Alternator model | | Marathon MP-H-10-4 |
| Prime power | (KW/KVA) | 10KW/12.5KVA |
| Frequency | (HZ) | 50 |
| Rated speed | (RPM) | 1500 |
| Rated current | (A) | 18 |
| Rated voltage | (V) | 400/230V |
| Engine power | (KW/KVA) | 17.5KW/22KVA |
| Cylinder Nos. | | 4 |
| Bore x stroke | (mm) | 85*92 |
| Displacement | (L) | 2.088 |
| Fuel comsumption | (L/h) | 2.6 |
| Oil pan capacity | (L) | 5 |
| Governing method | | Mechanical |
| Voltage regulation mode | | Automatic |
| Phase and connection | | 3 phase-4wire |
| Weight | (KG) | 467 |
| Size | (mm) | 1318*640*1137 |
| Certificate | | CCS+IMO Tier II |
