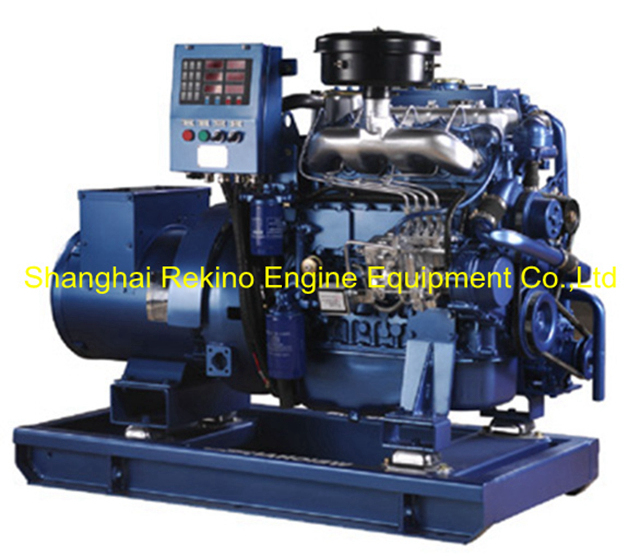

CCFJ24JW (WP3.9CD33E1)
Weichai
8502110000
24KW 30KVA
50HZ
Double circulate water cooling
| Genset Model | | CCFJ24JW |
| Engine model | | Weichai WP3.9CD33E1 |
| Alternator model | | Marathon MP-H-24-4 |
| Prime power | (KW/KVA) | 24KW/30KVA |
| Frequency | (HZ) | 50 |
| Rated speed | (RPM) | 1500 |
| Rated current | (A) | 43.2 |
| Rated voltage | (V) | 400/230V |
| Engine power | (KW/KVA) | 33.3KW/42KVA |
| Cylinder Nos. | | 4 |
| Bore x stroke | (mm) | 102*118 |
| Displacement | (L) | 3.86 |
| Fuel comsumption | (L/h) | 6.1 |
| Oil pan capacity | (L) | 6 |
| Governing method | | Mechanical |
| Voltage regulation mode | | Automatic |
| Phase and connection | | 3 phase-4wire |
| Weight | (KG) | 490 |
| Size | (mm) | 1368*640*1187 |
| Certificate | | CCS+IMO Tier II |
