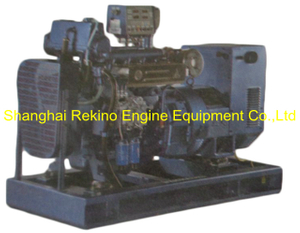

CCFJ40JW (WP4CD66E200)
Weichai Deutz
8502110000
40KW 50KVA
50HZ
Double circulate water cooling
Genset Model | | CCFJ40JW |
Engine model | | Weichai WP4CD66E200 |
Alternator model | | Marathon MP-H-40-4 |
Prime power | (KW/KVA) | 40KW/50KVA |
Frequency | (HZ) | 50 |
Rated speed | (RPM) | 1500 |
Rated current | (A) | 72 |
Rated voltage | (V) | 400/230V |
Engine power | (KW/KVA) | 60KW/75KVA |
Cylinder Nos. | | 4 |
Bore x stroke | (mm) | 105*130 |
Displacement | (L) | 4.5 |
Fuel comsumption | (L/h) | 9.1 |
Oil pan capacity | (L) | 13 |
Governing method | | Mechanical or Electric |
Voltage regulation mode | | Automatic |
Phase and connection | | 3 phase-4wire |
Weight | (KG) | 945 |
Size | (mm) | 1700*778*1212 |
Certificate | | CCS+IMO Tier II |
