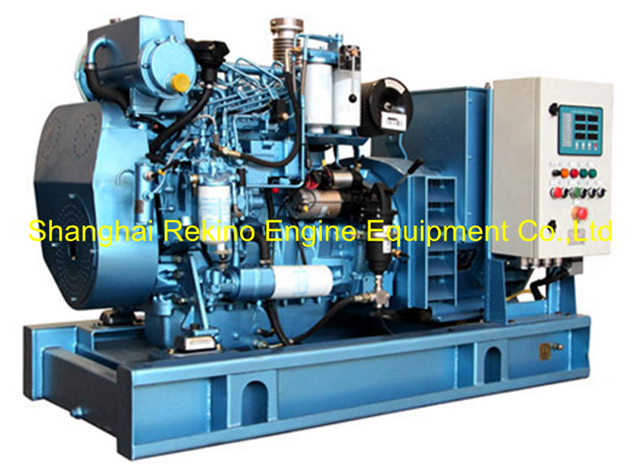

CCFJ50JW (WP4CD66E201)
Weichai Deutz
8502110000
50KW 62.5KVA
60HZ
Double circulate water cooling
| Genset Model | | CCFJ50JW |
| Engine model | | Weichai WP4CD66E201 |
| Alternator model | | Marathon MP-H-50-4 |
| Prime power | (KW/KVA) | 50KW/62.5KVA |
| Frequency | (HZ) | 60 |
| Rated speed | (RPM) | 1800 |
| Rated current | (A) | 90 |
| Rated voltage | (V) | 440/250V |
| Engine power | (KW/KVA) | 60KW/75KVA |
| Cylinder Nos. | | 4 |
| Bore x stroke | (mm) | 105*130 |
| Displacement | (L) | 4.5 |
| Fuel comsumption | (L/h) | 9.1 |
| Oil pan capacity | (L) | 13 |
| Governing method | | Mechanical or Electric |
| Voltage regulation mode | | Automatic |
| Phase and connection | | 3 phase-4wire |
| Weight | (KG) | 974 |
| Size | (mm) | 1700*778*1212 |
| Certificate | | CCS+IMO Tier II |
