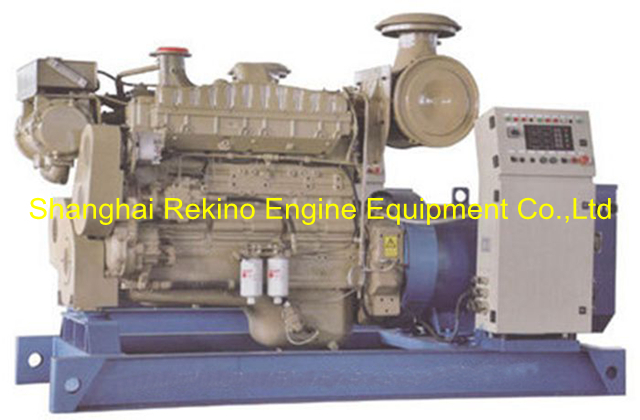

Cummins 150KW 188KVA 50HZ marine generator genset set (CCFJ150JW / NT855-DM)

Quantity:
  • CCFJ150JW / NT855-DM

  • Cummins

  • 8502120000

  • 150KW 188KVA

  • 50HZ

  • Sea water exchanger cooling

Cummins 150KW  199KVA 50HZ marine generator genset set (CCFJ150JW / NT855-DM)

Type of Gen-set
Cummins marine diesel generator
Generator model
CCFJ150JW
Rated Capacity (KVA) 188KVA
Rated Power (KW) 150KW
Standby power (KW) 165KW
Diesel Engine
Cummins NT855-DM / 6LTAA8.9-GM200
Alternator
Marathon MP-H-150-4 or Sunvim SVH274
Engine power  (KW) 180KW
Cooling Mode
Heat Exchanger Cooling
Rated Voltage (V) 400V
Rated Current (A) 271A
Rated Frequency (HZ) 50HZ
Power Factor(Lagging)
0.8
Phase & Connection
Three Phases & Three Wires, Y Connection
Rated Speed (RPM) 1500RPM
Fuel Consumption (g/kW.h) ≤205
Starting Mode
Electric Starting
Weight of Gen-set (KG) 2400KG
Overall Dimension  (mm) 2860*1300*1850mm
Certificate
CCS,IMO,BV,etc
