CCFJ50JW /6BT5.9-GM83
Cummins
8502110000
50KW 63KVA
50HZ
Sea water exchanger cooling

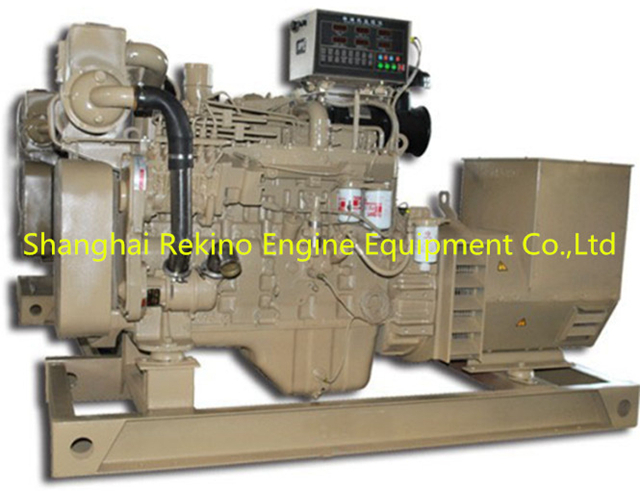

| Type of Gen-set | | Cummins marine diesel generator |
| Generator model | | CCFJ50JW |
| Rated Capacity | (KVA) | 63KVA |
| Rated Power | (KW) | 50KW |
| Standby power | (KW) | 55KW |
| Diesel Engine | | Cummins 6BT5.9-GM83 |
| Alternator | | Marathon MP-H-50-4 or Sunvim SVH224 |
| Engine power | (KW) | 83KW |
| Cooling Mode | | Heat Exchanger Cooling |
| Rated Voltage | (V) | 400V |
| Rated Current | (A) | 90A |
| Rated Frequency | (HZ) | 50HZ |
| Power Factor(Lagging) | | 0.8 |
| Phase & Connection | | Three Phases & Three Wires, Y Connection |
| Rated Speed | (RPM) | 1500RPM |
| Fuel Consumption | (g/kW.h) | ≤205 |
| Starting Mode | | Electric Starting |
| Weight of Gen-set | (KG) | 1200KG |
| Overall Dimension | (mm) | 2080*770*1200mm |
| Certificate | | CCS,IMO,BV,etc |
