You are here: Home » Products » Marine emergency generator » Weichai marine emergency generator » 180KW 225KVA 60HZ Weichai marine emergency generator genset (CCFJ180YW)
Share to:

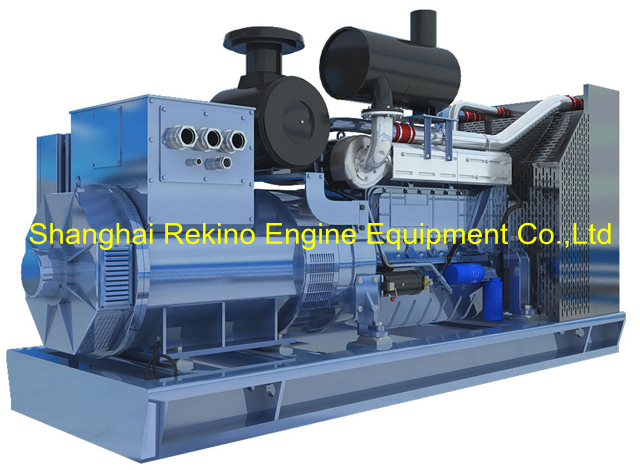

180KW 225KVA 60HZ Weichai marine emergency generator genset (CCFJ180YW)

  • CCFJ180YW
  • Weichai
  • 8502120000
  • 180KW 225KVA
  • 60HZ
  • Emergency
  • Close water cooling system
180KW  225KVA 60HZ Weichai marine emergency generator genset  (CCFJ180YW)

Generator model CCFJ180YW
Rated power 180KW
Standby power  198KW
Generator capacity 225KVA
Factor 0.8 lag
Frequency 60HZ
Voltage 440/260V
Current 325A
Phase / connection 3 phase 4 wire
Generator Weight 2059KG
Size  2542x1000x1572mm
Engine  Weichai WP10CD238E201
Rated power 216KW
Standby power  238KW
Bore*stroke 126x130 (mm)
Speed 1800RPM
Alternator  Marathon MP-H-180-4
Alternator  Sunvim SVH274
Excitation Brushless & self-excited
Insulation  H
Protection IP22/23
Governor Electric
Starting model  Double starter
