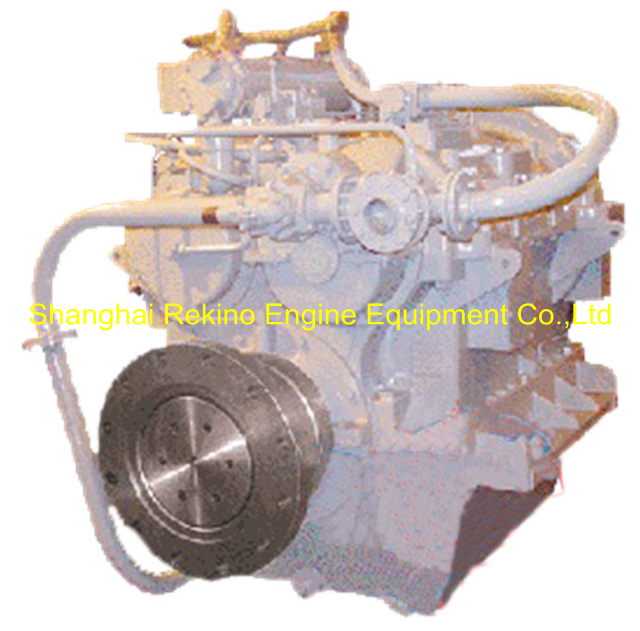

ADVANCE GWD Marine gearbox transmission

Quantity:



Inquire Add to Basket

Model:
GWD
Brand:
ADVANCE
Code:
8483409000
Type :
GWD series
Speed range :
300-1800RPM
thrust propeller :
80-750KN

Product Description

Model	Input Speed	Reduction Ratio	Trans. Capacity	Rated Thrust	Net Weight
	(r/min)	(i)	(kW/r·min-1)	(kN)	(kg)
GWD28.30	400-1800	2	0.397	80	1130
		2.5566
		3
		3.5714
		4.0526
GWD30.32	400-1800	1.9688	0.537	100	1350
		2.5185
		2.9583
		3.5238
		4
GWD32.35	400-1800	2	0.684	113	2080
		2.5556
		3
		3.5714
		4.0526
GWD36.39	400-1800	2.0323	0.919	140	2250
		2.4815
		2.9167
		3.4762
		3.9474
GWD39.41	400-1600	2	1.169	175	2960
		2.5357
		2.96
		3.5
		3.95
GWD42.45	400-1600	1.973	1.573	220	3630
		2.5484
		2.9286
		3.5833
		4
GWD45.49	400-1400	2.0323	2.051	270	4840
		2.4815
		3.087
		3.4762
		3.9474
GWD49.54	400-1200	1.9714	2.647	284	7300
		2.4667
		3
		3.5217
		3.9524
GWD49.65	400-1400	5.6316	2.051	270
GWD52.59	400-1200	1.9714	3.448	300	8180
		2.4667
		3
		3.5217
		3.9524
GWD60.66	400-1200	2	4.625	450	14000
		2.536
		2.96
		3.5
		3.95
GWD66.75	300-900	1.9714	6.99	700	16500
		2.4667
		3
		3.5217
		3.9524
GWD70.76	300-900	1.941	8.111	750	19000
		2.536
		3
		3.5
		3.95
