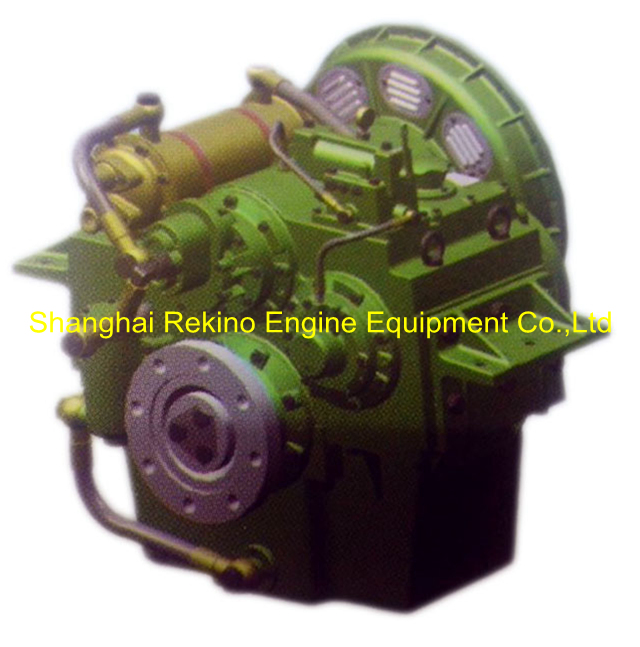

FADA J900A Marine gearbox transmission

Quantity:
Inquire Add to Basket

  • J900A

  • FADA

  • 8483409000

  • J900A

  • 750-1600RPM

  • 140KN

FADA  J900A Marine gearbox transmission

Model Nominal ratio Actual ratio Transfer Capacity (KW/RPM) Transfer Capacity (HP/RPM)
J900A 2.0 1.963 0.7 0.952
2.5 2.522 0.7 0.952
3.0 3.052 0.7 0.952
3.5 3.500 0.7 0.952
4.0 4.063 0.629 0.855


Rated speed : 750-1600RPM
Center distance: 335mm
Push power:140 KN
Net weight: 1600KG
Control: Mechanical, Electrical
