You are here: Home » Products » Marine gearbox » FADA Marine gearbox » FADA MA125 (FD125) Marine gearbox transmission
Share to:

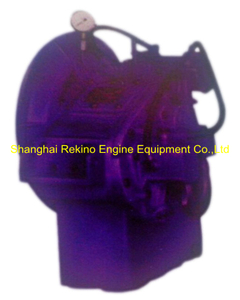

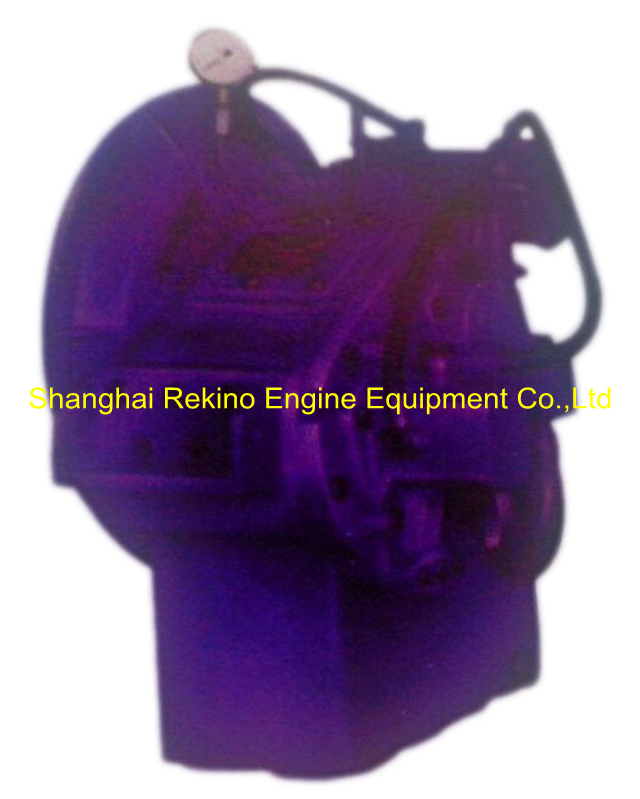

FADA MA125 (FD125) Marine gearbox transmission

Quantity:
  • MA125 (FD125)
  • FADA
  • 8483409000
  • MA125 (FD125)
  • 1500-3000RPM
  • 5.5KN
FADA  MA125 FD125  Marine gearbox transmission

Model Nominal ratio Actual Ratio Transfer Capacity (KW/RPM HP/RPM) Engine power KW /HP
1500RPM 1800RPM   2500RPM
MA125 (FD125) 2.0    2.5 2.03     2.46 0.020  (0.027) 36KW/ 49HP 42KW/ 57HP 50KW/ 68HP
3.00 3.04 0.018  (0.025) 33KW/ 45HP 38KW/ 53HP 45KW/ 63HP
3.50 3.57 0.016  (0.022) 29KW/ 40HP 34KW/ 46HP 40KW/ 55HP
4.00 4.05 0.014  (0.019) 25KW/ 34HP 29KW/ 40HP 35KW/ 48HP
4.50 4.39 0.013  (0.017) 24KW/ 31HP 26KW/ 36HP 32KW/ 43HP
5.00 4.7 0.011  (0.015) 20KW/ 27HP 23KW/ 32HP 28KW/ 38HP

 Old model is FD125, new model is MA125

Rated speed : 1500-3000RPM
Bell housing: SAE 3,4#
Center distance: 125mm
Push power:5.5 KN
Net weight: 120KG
Control: Mechanical
