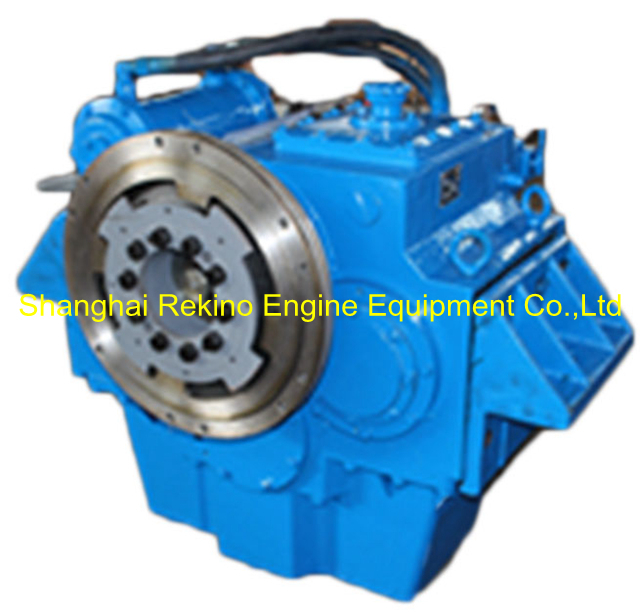

Fenjin FJ600A Marine gearbox transmission

Quantity:
Inquire Add to Basket

  • FJ600A

  • FENJIN

  • 8483409000

  • 1000-2100RPM

  • 90KN

Fenjin  FJ600A Marine gearbox transmission

Model Nominal Ratio Real Ratio Rate (KW/RPM) Rate (HP/RPM)
FJ600A 2.0 2.00 0.480 0.653
2.5 2.48 0.480 0.653
3.0 3.00 0.480 0.653
3.5 3.58 0.440 0.598
4.0 3.89 0.400 0.544


Speed range: 1000-2100 RPM
Rated thrust propeller: 90KN
Center Distance 320mm
Direction of rotation of the output shaft: Contrary
Bell housing: SAE 0 00
Control: Mechanical, electrical, pneumatic,
Flywheel: SAE 21 18 16 14
Size: 745x1094x1126mm
Net weight: 1300KG
